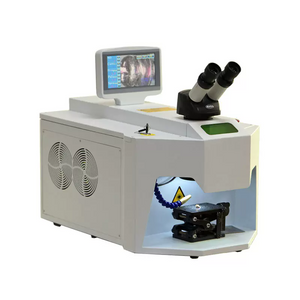

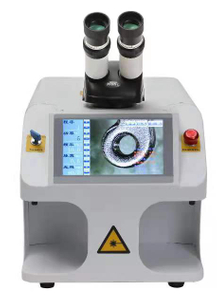

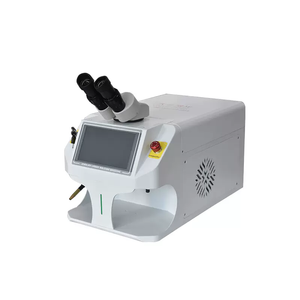

60W Mini Jewelry Laser Spot Welding Machine

60W Mini Jewelry Laser Spot Welding Machine

Product Description

The 60W Mini Jewelry Laser Spot Welding Machine is a high-precision laser welding system specially developed for jewelry manufacturing, repair, and micro metal processing. It is mainly used for perforating and spot welding of gold and silver jewelry, as well as precision welding of small and delicate metal components.

Laser spot welding is a key application of laser processing technology. This machine operates on the principle of thermal conduction, where laser radiation heats the surface of the workpiece and transfers heat into the interior, melting the material in a controlled manner. By accurately adjusting the pulse width, laser energy, peak power, and repetition frequency, a stable and precise molten pool is formed, ensuring strong, clean, and consistent welds.

Thanks to its compact structure and advanced control system, this welder is widely used in the jewelry industry and other precision industries requiring high accuracy and minimal heat input.

High-Speed & Efficient Welding Performance

The 60W Jewelry Spot Welder features an adjustable pulse frequency range of 1–15 Hz, enabling fast and precise welding across various materials and thicknesses. This allows operators to achieve rapid spot welding with excellent control, even on intricate or micro-sized components.

The machine delivers reliable welding performance on gold, silver, stainless steel, titanium, and other precision metals. With a small heat-affected zone, it prevents deformation, discoloration, or damage to surrounding areas, ensuring flawless results on delicate jewelry pieces.

This combination of speed, stability, and accuracy makes the machine an essential tool for professionals in:

• Jewelry manufacturing and repair

• Electronics micro-welding

• Medical and dental device production

• Precision metal component processing

Key Features

• One-button operation with automatic pumping

• Touch screen control system with integrated CCD camera and microscope

• PWM continuously variable cooling fans

• Deep weld penetration with strong joint strength

• Fully melted weld pool, no porosity or trachoma

• Seamless welding and repair with no visible marks

• Supports 24-hour continuous operation

• Compact desktop design for easy installation and operation

Advantages

• High welding speed and high efficiency

• Small heat-affected zone with minimal deformation

• Stable welding quality and consistent results

• Clean, pollution-free welding process

• Environmentally friendly operation

• Ideal replacement for traditional welding and repair methods

Applications

Widely used in precision machining and micro-welding of small parts, including:

• Gold and silver jewelry

• Rings, chains, pendants, earrings, and clasps

• Dental and denture welding

• Electronic components

• Watches and watch parts

• Stainless steel and titanium components

• Other fine metal products

Technical Parameters

• Laser Output Power: 60 W

• Laser Type: YAG Laser

• Laser Frequency: 1.0 – 15.0 Hz (Adjustable)

• Pulse Width: 0.1 – 15 ms (Step Adjustable)

• Spot Adjustment Range: ±3 mm

• Single Pulse Energy: 50 J

• Aiming & Positioning: Integrated CCD Camera & Microscope

• Cooling System: Built-in Water Chiller

• Operation Method: Touch Screen Control

• Operating Temperature: ≤45°C

• Input Voltage: AC 220V ±10%, 50Hz

• Power Consumption: 2.5 kW

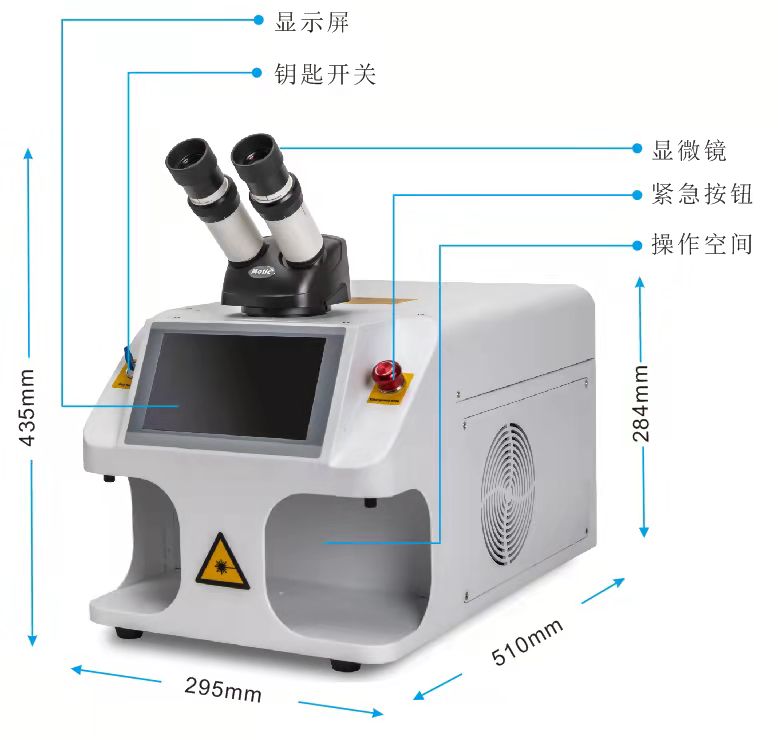

Machine Dimensions & Weight

• Display Touch Screen Installation Size: 137 × 190 mm

• Machine Dimensions (L × W × H): 510 × 295 × 395 mm

• Net Weight: Approx. 30 kg
