60W

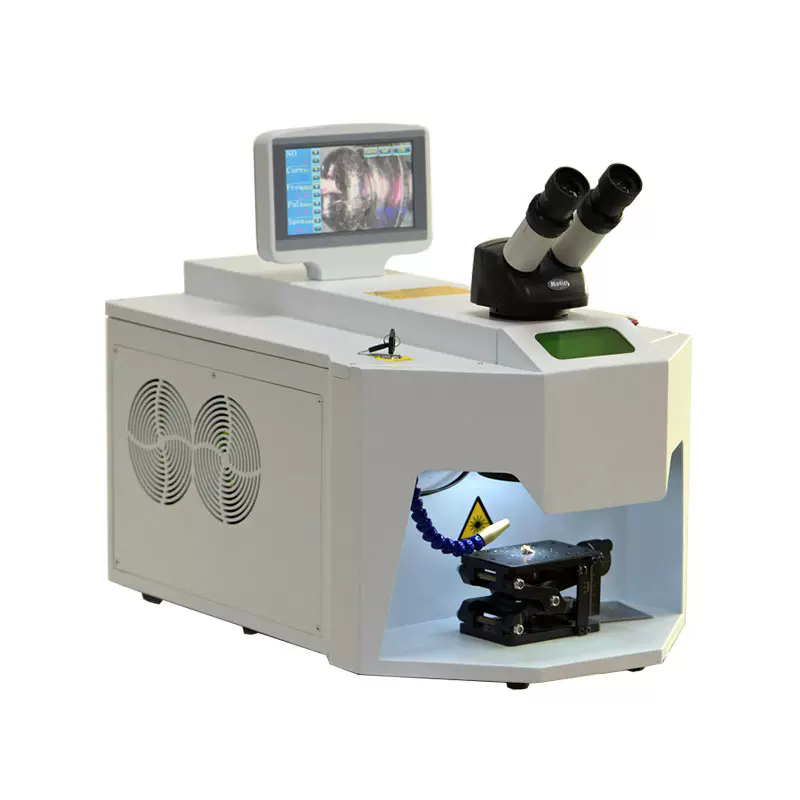

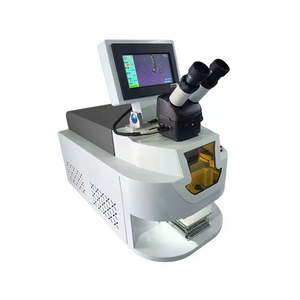

This Mini Laser Welding Machine is specially developed by Dapeng Laser for precision laser welding of jewelry. It is mainly used for perforating and spot welding of gold and silver jewelry, as well as micro welding of small and delicate metal components.
Laser spot welding is an important application of laser processing technology. The welding process is based on thermal conduction: laser radiation heats the surface of the workpiece, and the heat is then diffused into the interior through thermal conduction, melting the material. By precisely controlling the pulse width, laser energy, peak power, and repetition frequency, a stable and controlled molten pool is formed.
Thanks to its unique advantages, this machine is widely used in the gold and silver jewelry industry, as well as for welding miniature and precision parts requiring high accuracy and minimal thermal impact.
One-button operation for automatic pumping
PWM continuously variable cooling fans
Touch screen control with integrated CCD display
Small heat-affected zone
No deformation of the workpiece during welding
Deep weld penetration with strong joint strength
Fully melted weld pool, no porosity or trachoma
Seamless repair with no visible welding marks
Supports 24-hour continuous operation
High welding speed and high efficiency
Deep welding depth with minimal deformation
Very small heat-affected zone
Excellent welding quality and consistency
Clean, pollution-free welding process
Environmentally friendly operation
Widely used in precision machining of small and micro parts, including:
Jewelry (gold, silver, and precious metals)
Dental and denture welding
Communication equipment
Metal products
Watches and watch components
Stainless steel parts
Other precision manufacturing industries
Laser Output Power: 60 W
Laser Type: YAG Laser
Laser Frequency: 1.0 – 10.0 Hz (Continuously Adjustable)
Pulse Width: 0.1 – 15 ms (Step Adjustable)
Spot Adjustment Range: ±3 mm
Single Pulse Energy: 50 J
Aiming & Positioning: Integrated CCD Camera and Microscope
Cooling System: Built-in Water Chiller
Operation Method: Touch Screen Control
Operating Temperature: ≤45°C
Input Voltage: AC 220V ±10%, 50Hz
Unit Power Consumption: 2.5 kW
Display Touch Screen Installation Size: 137 × 190 mm
Machine Dimensions (L × W × H): 510 × 295 × 395 mm
Net Weight: Approx. 30 kg
