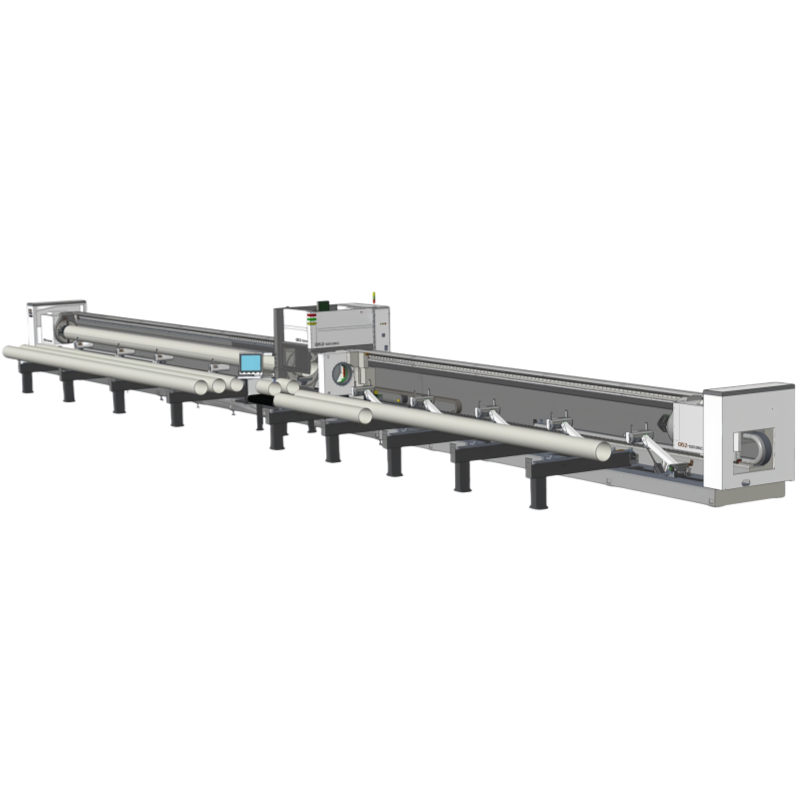

12000W Fiber Laser Tube Cutting Machine 520mm 12m 3-chuck

Product Name: Fiber Laser Tube Cutting Machine

Model: G52-12052

Laser Power: 12000W

Platform Type: Large-format platform, 12 meters, triple chuck design

Application Scope:

Material Compatibility:

• Round tubes, square tubes, rectangular tubes, oval tubes, waist-shaped tubes, I-beams, channel steel, angle steel, and various special-shaped tubes

Applicable Industries:

• Steel structures, aerospace, agricultural machinery, escalator handrails, warehouse racking, and other metal tube processing industries

Material Sizes:

• Round tube outer diameter: φ50~520mm

• Square tube: 50~360mm

• Rectangular tube: max. 400*300mm

Loading/Unloading Length:

• Based on standard configuration, customizable on request

Automation Level:

• Semi-automatic loading system included as standard

Key Component Configuration:

Main Technical Parameters:

Laser Source:

• Power Output: 12000W

• Mode: Continuous fiber laser

• Fiber Core Diameter: 50-100μm

• Cooling Method: Water cooling

• Cutting Materials: Carbon steel, stainless steel, aluminum alloy, brass, copper, etc.

Machine Frame:

• Structure: Tube & Plate Welded Frame

• Length: 27 meters (Main: 16.5m, Sub: 10m)

Chuck System:

• Model: QL520

• Mode: Pneumatic

• Max Load: 1200kg

Cutting Head:

• Focal Length: 200-250mm

• Collimating Lens: 100mm

• Focus Adjustment Speed: 100mm/s (automatic)

• Auxiliary Gas Pressure: ≤3Mpa

Water Chiller:

• Coolant: Distilled/Deionized Water

• Temp Range: 20~30°C (adjustable)

• Temperature Control Accuracy: ±0.1°C

• Flow Rate: 10L/min

• Head Lift: 20m

Overall System Specs:

• Dimensions (LWH): 2750046002900 mm

• Weight: 24T - 25T

• Power Consumption: 90~95 KW

• Operating Temperature: 0~40°C

Processing Capacity:

• Round Tube: φ50-φ520mm

• Square Tube: □50-□360mm

• Rectangular Tube: Max. 400x300mm

• Cutting Kerf Width: 0.1-0.2mm

Axis Motion Ranges:

• Chuck Clamping Stroke: φ50-υ285mm (Switchable jaws up to φ520mm)

• Y/X/Z/U Axis Travel: 12200/420/600mm/Infinite Rotation

Precision & Speed:

• X/Y Axis Positioning Accuracy: ±0.04mm/1000mm

• X/Y Axis Repeatability: ±0.04mm

• U Axis Rotation Accuracy: ≤7 arcmin

• U Axis Max Speed: 45 RPM

• X/Y Axis Max Acceleration: 0.5G

• X/Y Max Idle Speed: 70 / 60 m/min

Loading System:

• Tube Length: 5800~12200mm

• Loading Cycle: Initial ≤90s, Subsequent ≤45s

• Loader Capacity: Max 2000kg (2 tubes)

• Max Tube Weight: Manual & Auto: 1200kg

Unloading System:

• Tail Material: 0~50mm

• Max Unloading Length: 12 meters (standard: 6m)

Control & Motion Systems:

1. Bed Frame:
Welded structure with stress relief annealing at 600°C, precision machining ensures rigidity and dimensional stability. Side-hanging design improves loading efficiency and space usage.

2. Gantry & Z-Axis Module:

• Gantry: Annealed and stress-relieved for rigidity.

• Z-axis: CNC controlled servo motor with ball screw and linear guides. Stroke controlled via proximity sensors.

3. Electrical System:

• Controller: Bochu CNC (Windows-based)

• Motion Control: High-speed interpolation, servo drives, intuitive menu navigation

• Features: Fast cutting of corners, segment piercing, automatic pipe edge detection, one-key square tube leveling, graphical nesting

4. Low Voltage Cabinet:

• Contains relays, breakers, servo drives, filters, etc. Built-in alarms and protection features.

Utility Requirements:

Power:

• 3-phase 380-400V ±5%, 100KVA minimum

• Grounding resistance: ≤3Ω

• Cable: ≥16mm²

Cooling Water:

• Type: Deionized/Distilled

• Quantity: 90L

• Conductivity: <10μS

Gases:

Note: Air must be oil-free and moisture-free, filtered to 0.01μm precision.

Installation Environment:

• Temperature: 5~30°C

• Humidity: <70%

• Vibration: Ground must be level, vibration-free

• Isolation: Laser and control cabinet should be away from high EMI sources like arc welding
