Raycus

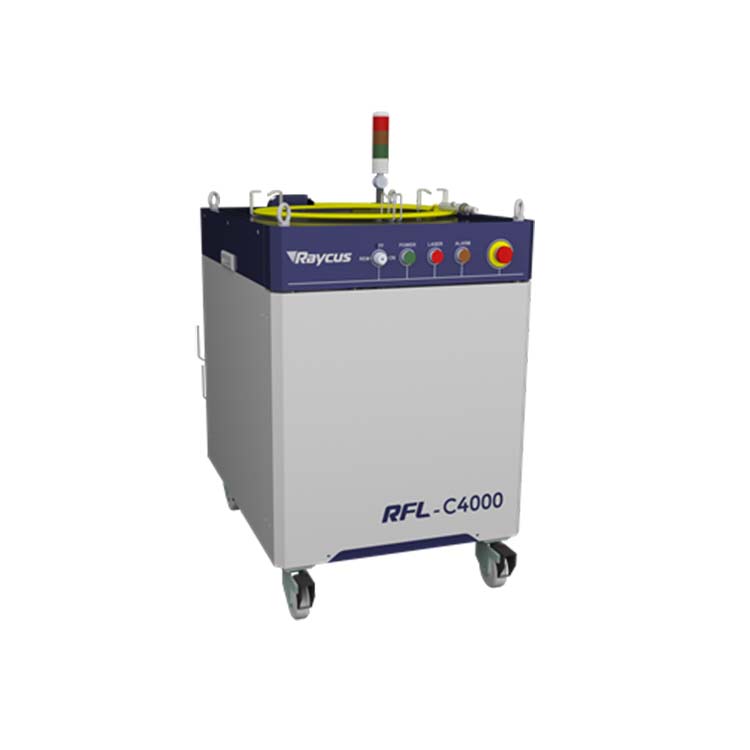

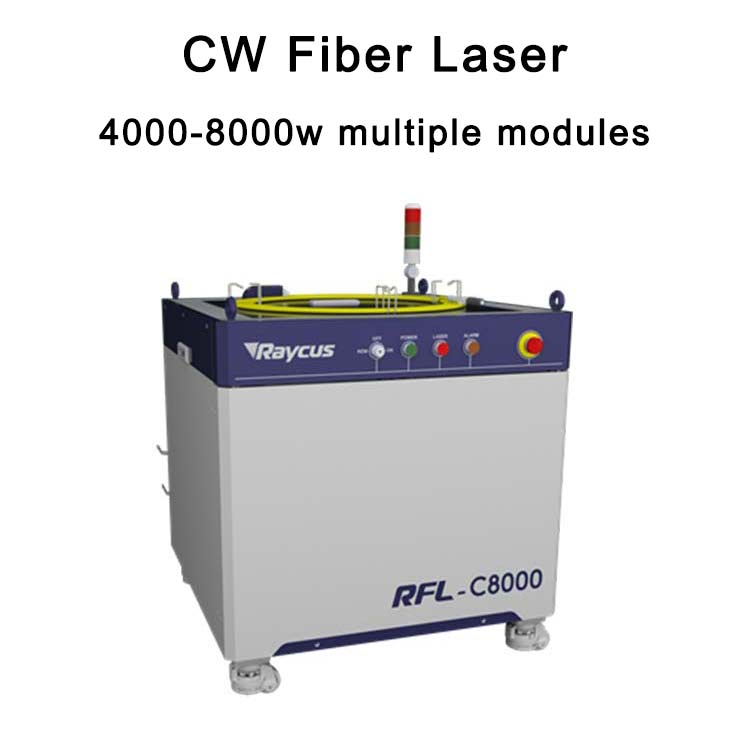

Fiber Cutting Parts Fiber Laser Source Multi-mode CW fiber laser RFL-C4000X 4KW 6KW 8KW 12KW 15KW 20KW 30KW
Products Description：
6. Small size, easy to install
| Model | RFL-C4000X | RFL-C6000X | RFL-C8000X |
| Optical characteristics | |||
| Average output power （W） | 4000 | 6000 | 8000 |
| Center wavelength (nm) | 1080±5 | ||
| Operating mode | CW/Modulate | ||
| Maximum modulation frequency （KHZ） | 5 | 2 | 2 |
| Output power stability | ±1.4% | ||
| Red light | Yes(Output red light power 0.5mW-1mW) | ||
| Output characteristics | |||
| Output connector | QBH（customizable） | QD | |
| Output fiber core diameter ( μm) | 100（customizable） | ||
| BPP(mm.mrad) | ≤4.5 | ≤4.5 | ≤5 |
| Polarization state | random | ||
| Output fiber length （m） | ≤20 | ≤20 | ≤30 |
| Electronically controlled features | |||
| Input power | 323-437,Three-phase four-wire (including PE) connection,@47-63Hz | ||
| Control mode | externalRS232/externalAD/RS232/AD | ||
| Power adjustment range | 10-100 | ||
| Other features | |||
| size（mm） | 670*990*1160 | 900*960*1160 | |
| weight（KG） | ＜280 | ＜360 | ＜400 |
| cooling method | Water Cooling | ||
| Operating temperature（℃） | 10-40 | ||

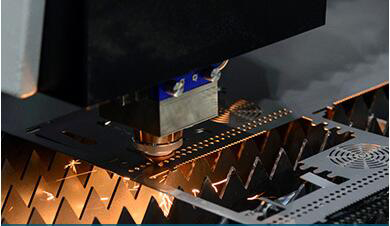

Application：
