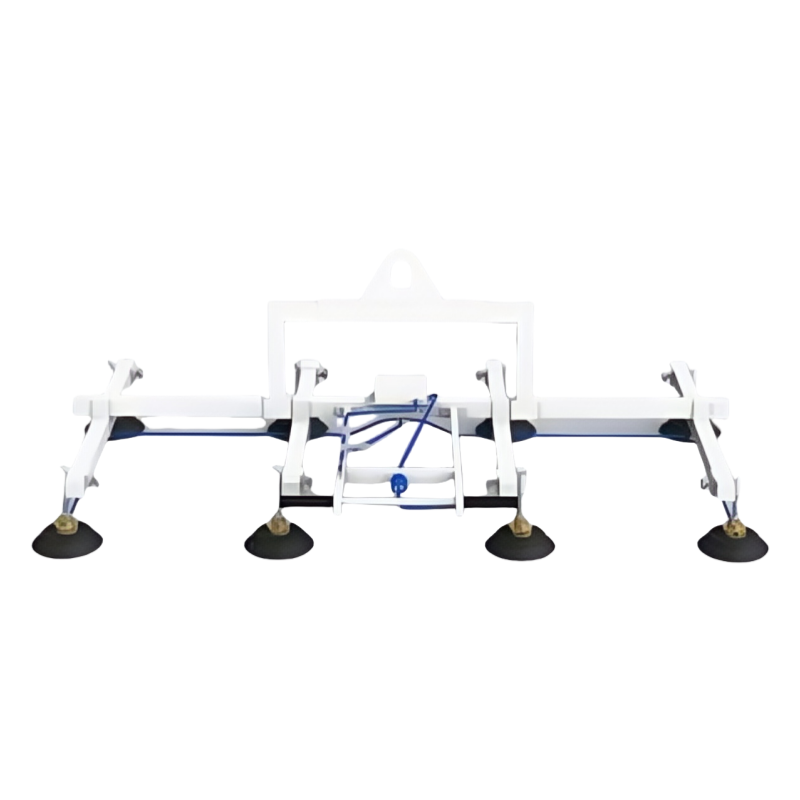

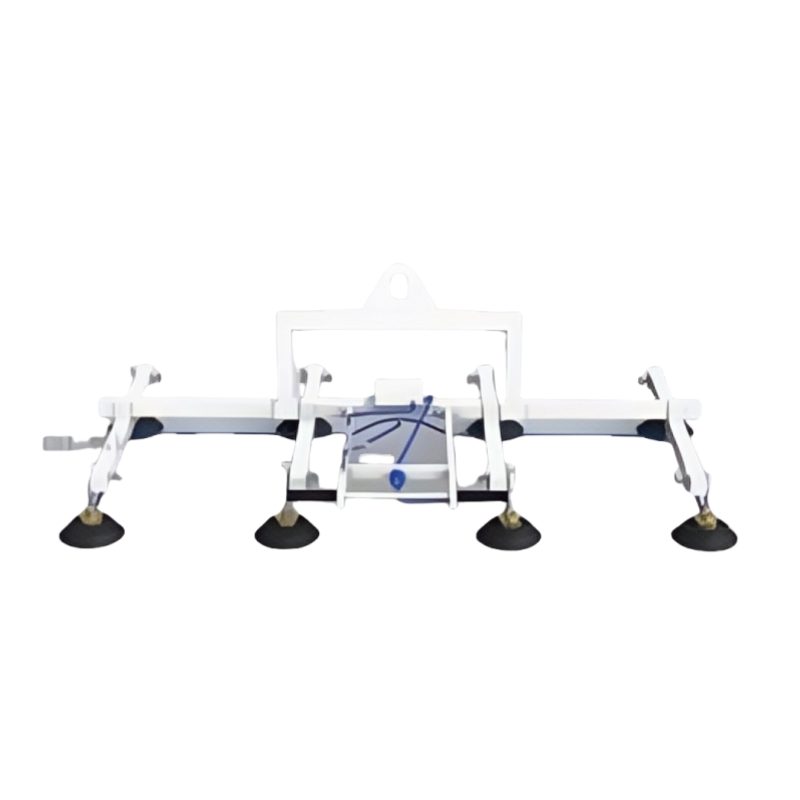

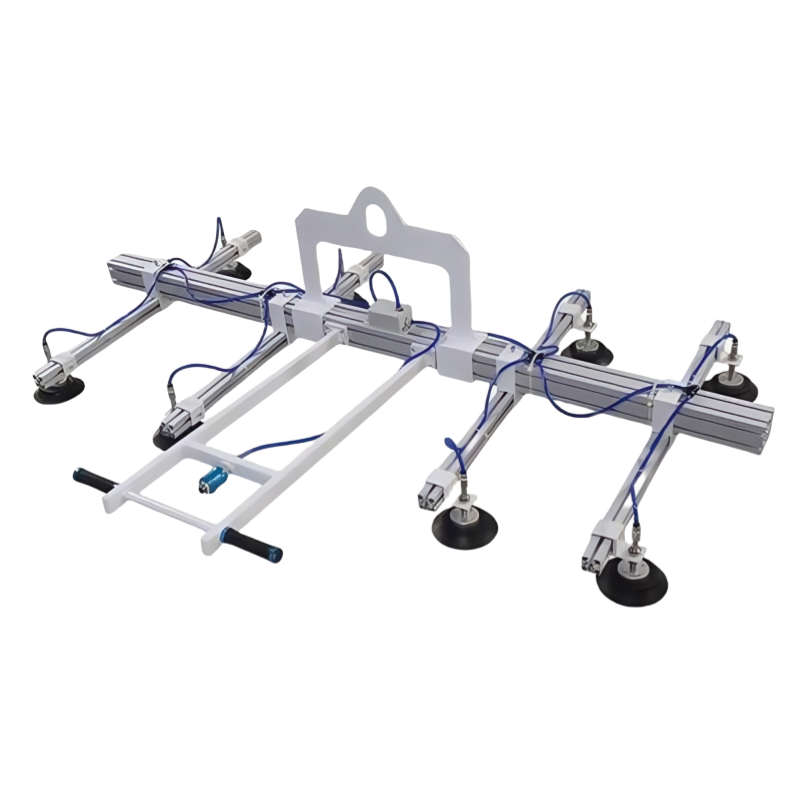

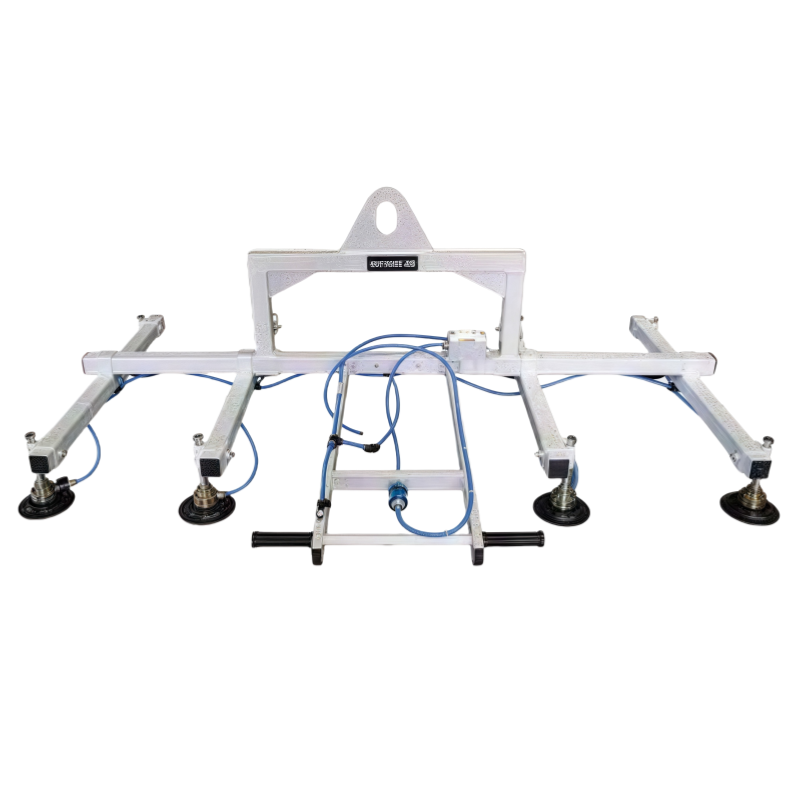

JS-300-2M/3M
High Load Capacity – Designed to lift up to 300kg of metal sheets, including stainless steel, aluminum, and carbon steel.
Strong 0.8MPa Vacuum System – Provides reliable and stable suction for safe material handling.
Adjustable Suction Cups – Configurable suction pads to accommodate different sheet sizes and shapes.
Non-Damaging Handling – Prevents scratches, dents, or deformation of delicate surfaces.
360° Rotation & Tilting Option – Allows for easy positioning and orientation of sheets.
Automatic Pressure Monitoring – Ensures consistent vacuum pressure for enhanced safety.
Ergonomic Control System – Simple controls for effortless operation, reducing manual labor.
Safety Features – Equipped with fail-safe vacuum retention in case of power failure to prevent accidental drops.
✅ Metal Fabrication – Efficiently handles steel and aluminum sheets for cutting, welding, and assembly.
✅ Manufacturing & Production Lines – Used in automotive, aerospace, and heavy machinery industries.
✅ Glass & Panel Handling – Suitable for large, flat materials such as glass, composite panels, and metal plates.
✅ Logistics & Warehousing – Ideal for loading/unloading sheet materials in factories and warehouses.
✅ Construction & Building Materials – Lifting of cladding panels, roofing sheets, and facade elements.
Applicable Materials:
Metal Sheets: Including iron sheets, aluminum sheets, stainless steel sheets, and other metal materials with a wide range of thicknesses.
Non-Metal Sheets: Suitable for flat and smooth materials such as plastic sheets.
Automation Control:
CNC System: The equipment is equipped with an advanced CNC system, which precisely controls the transport, positioning, and stacking of sheets, enabling efficient production.
Multi-Axis Robotic Arm: Typically equipped with a multi-axis robotic arm capable of handling sheets of various sizes and specifications, ensuring that the sheets are not deformed or scratched during handling.
Safety and Efficiency:
Automated handling equipment reduces risks associated with manual operations, such as the heavy weight of sheets or sharp edges that can cause injury to workers.
Significantly improves production efficiency, particularly in factories with batch processing, where automated handling systems ensure continuous production.
Suction System:
Usually equipped with a vacuum suction system or electromagnetic suction cups suitable for handling smooth-surfaced sheets.
Vacuum suction is suitable for materials like aluminum sheets, stainless steel sheets, and plastic sheets, while electromagnetic suction cups are mainly used for iron sheets or other magnetic materials.
Flexible Processing:
The equipment is highly adaptable to sheets of varying thickness and sizes, with adjustments made according to different processing needs.
| Product Model | JS-300-2M/3M |
|---|---|
| Rated Load (kg) | 300 |
| Suction Cup Diameter (mm) | 150 |
| Number of Suction Cups | 8 |
| Outer Dimensions (mm) | 2000×1000, 3000×1000, 3000×1500, 4000×2000 |
| Plate Dimensions (mm) | 3000×1500, 4000×2000 |
| Working Voltage | 0.8 MPa Air Supply |
| Product Model | JS-JG300-2M/3M | JS-JG600-2M/3M | JS-JG800-2M/3M |
|---|---|---|---|
| Rated Load (kg) | 300 | 600 | 800 |
| Suction Cup Diameter (mm) | 150 | 150 | 150 |
| Number of Suction Cups | 8 | 6 | 6 |
| Outer Dimensions (mm) | 2000×1000, 3000×1000, 3000×1500, 4000×2000 | Same as JS-JG300-2M/3M | Same as JS-JG300-2M/3M |
| Plate Dimensions (mm) | 3000×1500, 4000×2000 | Same as JS-JG300-2M/3M | Same as JS-JG300-2M/3M |
| Working Voltage | DC12V | DC12V | DC12V |
| Product Model | JS-GC300-2M/3M | JS-GC600-2M/3M | JS-GC800-2M/3M |
|---|---|---|---|
| Rated Load (kg) | 300 | 600 | 800 |
| Suction Cup Diameter (mm) | 150 | 200 | 200 |
| Number of Suction Cups | 8 | 8 | 8 |
| Outer Dimensions (mm) | 2000×1000, 3000×1000, 3000×1500, 4000×2000 | Same as JS-GC300-2M/3M | Same as JS-GC300-2M/3M |
| Plate Dimensions (mm) | 3000×1500, 4000×2000 | Same as JS-GC300-2M/3M | Same as JS-GC300-2M/3M |
| Working Voltage | AC220V/380V | AC220V/380V | AC220V/380V |
Sheet Metal Processing Industry: Primarily used for loading and unloading sheets in laser cutting, stamping, bending, and other processes.
Metal Processing Plants: Suitable for bulk handling and stacking of metal sheets, especially during long-term, high-frequency operations, where automated equipment can effectively reduce errors and waste.
Home Appliance Manufacturing: Automated handling equipment can be used for transporting materials like refrigerator, washing machine, and air conditioner shells, enhancing the level of automation in production lines.
Automotive Manufacturing: In the processing of automotive body panels, automatic stacking and handling equipment ensures the safe transport of large sheet metal parts.
These devices provide an efficient automated solution for sheet metal processing, significantly reducing labor intensity while improving production efficiency and product quality.
